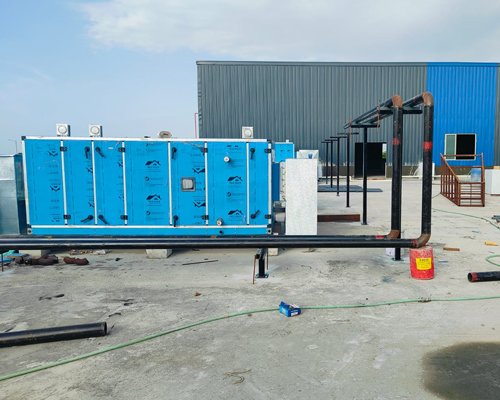

Air Handling Unit

Customized Engineering / Delivery Excellence
PSK Air handling Unit are designed for best mechanical performance, equipped with AMCA certified fans for superior performance and EN1822/ISO16890/UL certified filters for high duct holding capacity and low air pressure drop.

The Units are available in wide range of capacity, best leakage class and world class quality suitable for various industrial, cleanroom, building and comfort application.

Casing Construction

  • Outer skin : Pre-coated Galvanized / SS – Inner Skin : Galvanized (Optional : Aluzinc, SS, Aluminium) Available in varying sheet thickness
  • Panel Thickness : 25 mm / 50 mm thick sandwich panel insulated with PUF/PIT/Mineral wool.
  • Framework : Airtight & robust extruded aluminium hollow profile with thermal break or standard Aluminium profile ensuring excellent thermal & sound insulation and minimize condensation (Thermal Briding).

Filters:

  • MERV 6 (EU3) to MERV15 (F9) available in Panel & Bag type construction
  • Semi-HEPA/HEPA Filter
  • Chemical Filters
  • ESP (Electro-Static Precipitator) Filters

Blower Section

  • AMCA Certified Blowers
  • Types of Fan
  1. EC Fan
  2. Direct Driven Plug Fan
  3. Direct/Belt Driven DIDW Forward/ Backward Curved Centrifugal Fan
  • VFD compatible motors with IE2/IE3 and Permanent magnet motors with IE4 efficiency.

Value added features:

  • Wide airflow range from 1000 – 50000 CFM
  • Suitable for medium & high pressure systems
  • Customized AHU sizing
  • Single & Double Tier arrangement
  • Robust Construction module
  • Best leakage class
  • High resistance against corrosion using Pre-Coated sheets
  • Food grade D-gasket for leak proofing
  • Low Height Ceiling suspended Units/vertical units
  • Suitable for indoor & outdoor application
  • AMCE certified fans for air Performance & Sound
  • Shortest Lead Time.
